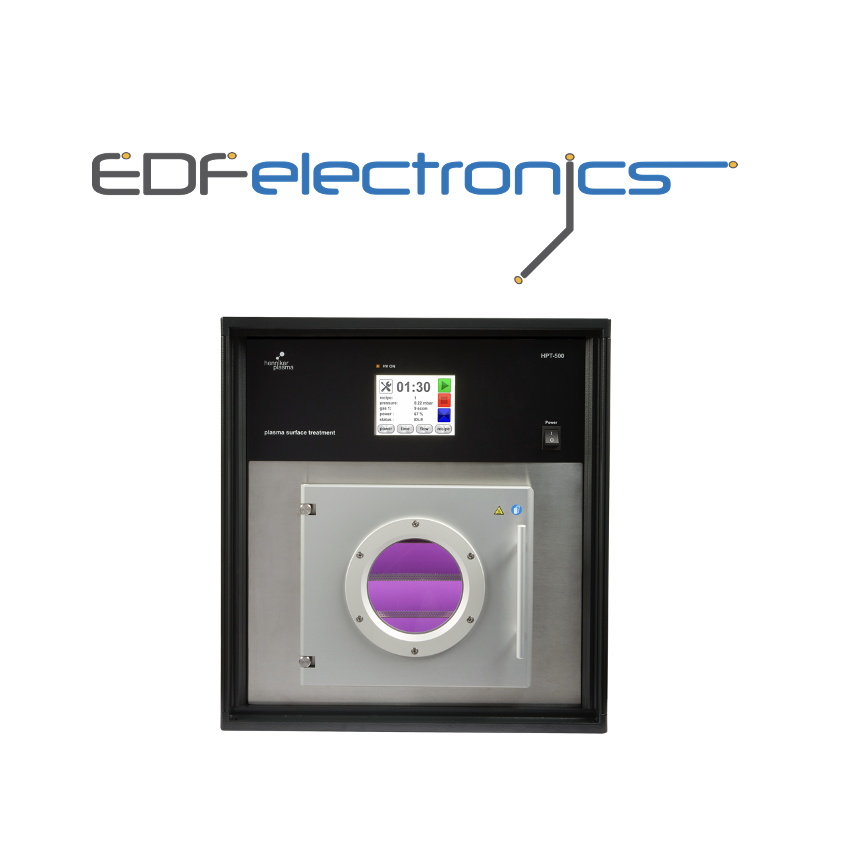

HPT500-FI - Vacuum Plasma treatment system


The Henniker Plasma HPT500 low pressure plasma treatment systems are microprocessor controlled bench-top devices that are ideal for routine laboratory, R&D and light industrial tasks.

0.00 zł 0.0 PLN 0.00 zł

0.00 zł

    This combination does not exist.

    Terms and Conditions
    Lead time 4-6 weeks

    HPT 500 Fixed Inlet version main specifications:

    • The airflow is set, so there is no extra option for adding additional gas into the process. It is the basic version of the device.
    • "BenchTop" housing dimensions: W: 553 x H: 600 x D: 615 mm
    • Weight: 45 kg
    • Rectangular chamber: 240 x 240 x D: 400 mm with three trays, each measuring 195 x 375 mm
    • Power: 0…250W, smoothly adjustable with 40 kHz power supply
    • User interface: 5.7” TFT touch panel
    • Programmable timer: 0…99 min with 1-second resolution
    • Power supply: 230 VAC
    • The device needs an oil or dry pump for proper operation.


    • compact benchtop unit
    • user friendly TFT interface
    • recipe store
    • fast treatment time
    • precise & repeatable
    • no hazardous emissions
