PPS 1500D - Magnetron Power Supply

PPS 1500D - Magnetron Power Supply

https://www.edfelectronics.com/web/image/product.template/15013/image_1920?unique=760518c

1500W DC power supply new model 1500W,230 VAC, RS232 or RS485 in standard


0.00 zł 0.0 PLN 0.00 zł

​

This combination does not exist.

This content will be shared across all product pages.

Contact Us

Terms and Conditions
Lead time 4-6 weeks

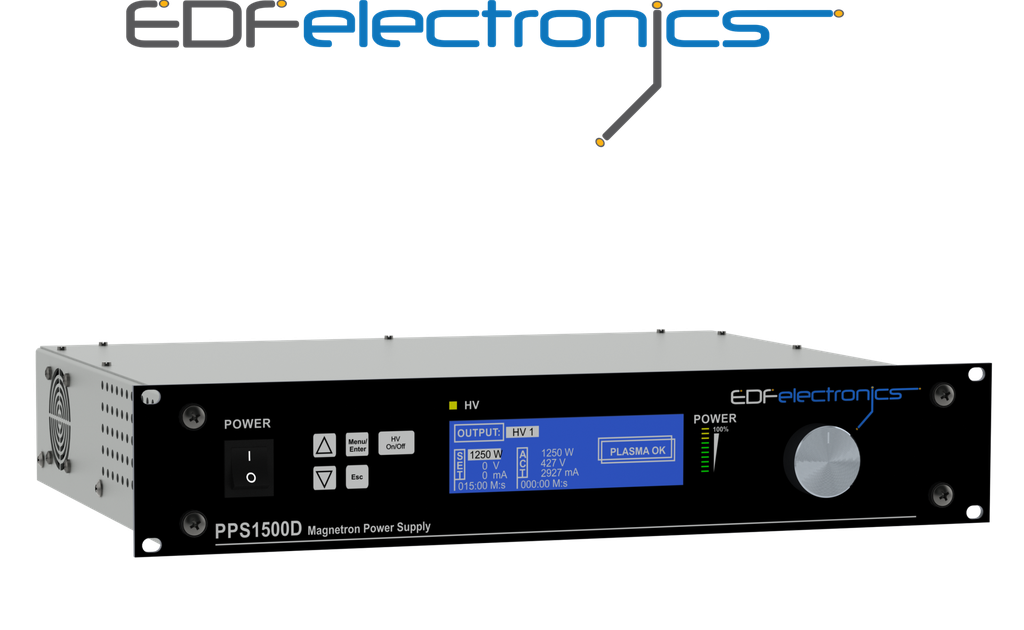

PPS 15​00D

The PPS 1500D is a versatile dual source power supply for R&D coating & cleaning applications of 1500W max power with accuracy of 1 mA,V and W only. It is excellent power source for low power R&D application. It can control up to two sources which can be any combination of compact magnetron sputter heads or glow discharge heads. Sputter sources can be positioned on separate chambers even. The efficient glow discharge head used together with air as the process gas gives excellent plasma/ion cleaning of substrates and other critical parts such as TEM grids. With the glow discharge, hydrocarbons or biological material can also be etched.

Specification:

Input Supply Voltage (Configurable with order)

AC 220V±10%

Output Power

0 - 1500W (1W step)

Output Voltage

0 - 1000 VDC negative (1V step), Peak 1200 VDC

Output Current

 0 - 1000 mA (1 mA step)

Insulation Level

Class B

Adjustment accuracy

≤ 1%

Regulation Mode

Power, current and voltage

Output Protection

Output overvoltage,

output overcurrent,

output imbalance

Input Protection

Input overvoltage,

input undervoltage,

inputovercurrent,

phase loss

Ripple Noise

Switching: 2% p-p (50 kHz)

Line: 1% p-p (100/120 Hz)

Ramp Timer

0.1, 1.0, or 10 second, selectable by/in user interface

Communication

ModBus RTU/TCP

Interface

RS234/485,

Analog I/0*,

Ethernet TCP*

Type of Control

Local or remotely

Arc Menagment

Yes

Input Voltage

110 to 240 VAC (50 to 60 Hz),

1 phase operation

Input Current

Max 8A,

Power factor min 0.90

Dimensions [mm]

483W x 395D x 88H ( 2U 19" Rack Mounting Standard )

Weight [Kg]

13.8 kg

Compliance

CE, RoHS2

* additional options

Features:

  • Operating mode: DC
  • Fast response arc detection/suppression
  • Switched control methods (I, V, P) for maximum performance,
  • Transparent interface with graphic display and desk light identification parameters
  • Stable power operation from just 2W,
  • High acceptance output impedance – ability to work with magnetrons of different sizes,
  • User-friendly interface with graphic display, keypad, and rotary encoder
