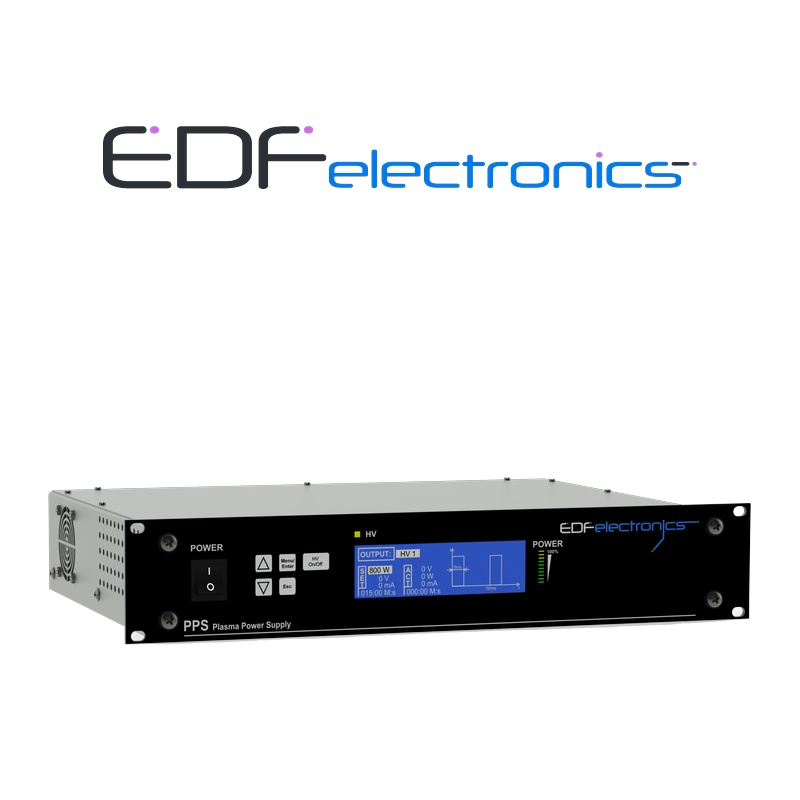

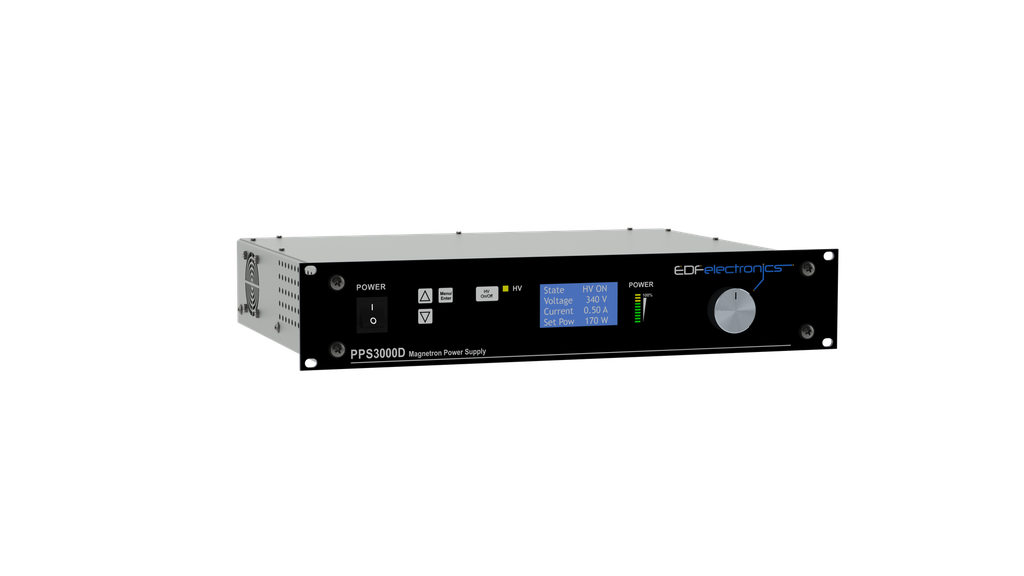

PPS 3000D Magnetron Power Supply
Universal high-voltage power supply for plasma applications. Widely used to drive magnetron sources where the required power does not exceed 3000W.
This content will be shared across all product pages.
PPS 3000D
PPS 3000D is a universal high-voltage power supply for plasma applications. Widely used to drive magnetron sources where the required power does not exceed 3000W.
The latest in electronics standards place the PPS3000D at the highest level, with exceptional stability and with user friendly features such as "Easy control" which allows device control via mobile devices and through the internet.
Specifications:
| Input Supply Voltage ( Configurable with order ) | AC220V±10% |
| Output power | 3000W max |
| Output Voltage / Current | 200– 1000 VDC negative polarisation (10-volt resolution) 0 – 3000 mA (1 mA resolution) |
| Insulation level | Class B |
| Adjustment accuracy | ≤1% |
| Regulation mode | Power, Voltage or Current mode |
| Output protection | Output overvoltage, output overcurrent, output imbalance |
| Input protection | Input overvoltage, input undervoltage, input overcurrent, phase loss |
| Communication Interface | Analog I/O, Digital on repeat |
| Type of control | Local or remotely |
| Arc Detection | Dynamic is suppression function, less likely to generate arc, wide load adaptability range |
| Dimensions | 483 x 395 x 88 mm (W x D x H)- 2U Rack Mounting Standard |
| Weight | 10.8 kg |
Features:
- Operating mode: DC
- Fast response arc detection/suppression
- Switched control methods (I, V, P) for maximum performance,
- Transparent interface with graphic display and desk light identification parameters
- Stable power operation from just 2W,
- High acceptance output impedance – ability to work with magnetrons of different sizes,
- User-friendly interface with graphic display, keypad, and rotary encoder
