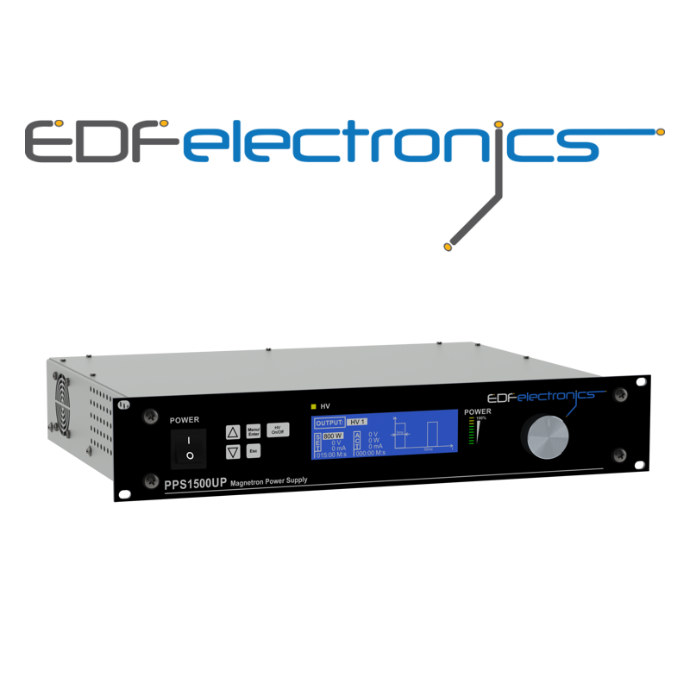

PPS1500U-120 Magnetron Power Supply
1500W,120kHz Unipolar Pulse DC power supply RS232 or RS485 in standard *
*One of the interfaces has to be chosen with the order
This product is no longer available.
This content will be shared across all product pages.
PPS1500U-120
The MAGNETRON product line includes sputtering power supplies for DC, MF and PulsDC applications for low power and high accurate process stabilisation – up to 1,5 kW. With good arc handling systems our power supplies are perfect for R&D applications and small manufacturing processes, where high accuracy of coating thickness layers are required
Output power: | PPS1500U-120 1 … 1500 W DC/PulseDC | PPS1500U-300 1 … 1500 W DC/PulseDC |
| Output Voltage: | 1200V max in peak | 1200V max in peak |
| Output Current: | 3A max | 3A max |
| Mode of operation: | DC and Pulse DC | DC and Pulse DC |
| Frequency of operation: | 10 kHz … 120 kHz for PulseDC | 10 kHz … 300 kHz for PulseDC |
| Main Supply: | 230 VAC/ 6,15A | 230VAC/ 6,15A |
| User Interface: | Graphics LCD 240 x 64 | Graphics LCD 240 x 64 |
| Hardware Interface: | RS 232 or RS485 EthernetIP, Analog I/O* | RS 232 or RS485 EthernetIP, Analog I/O |
| Mobile device control: | - | – |
| Arc Management: | Monitoring only | Monitoring only |
| Duty Cycle | 3…99% | 3…99% |
| Standards compliances | CE, RoHS | CE, RoHS |
*Additional options to be chosen with the order
