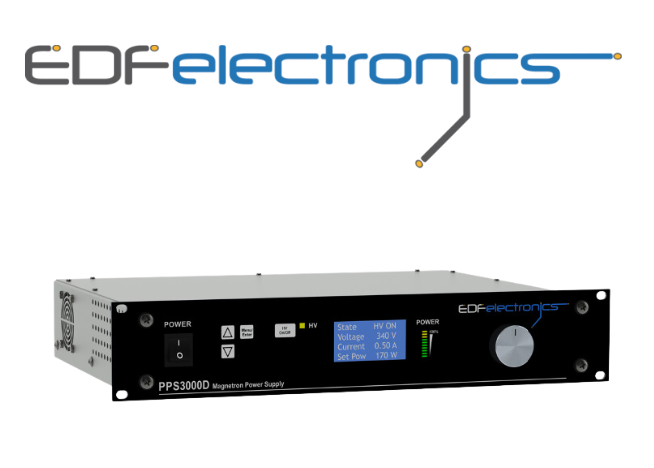

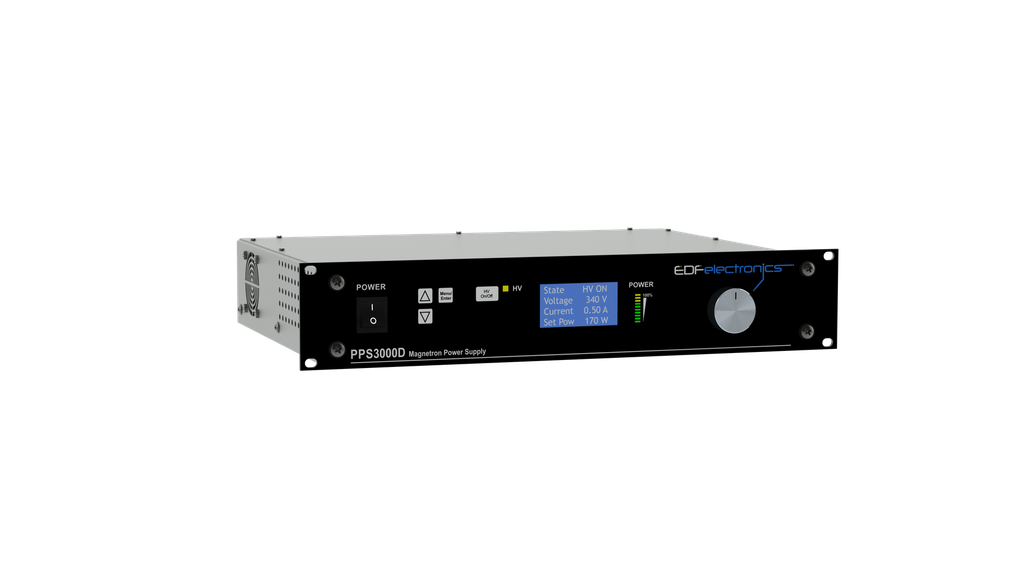

PPS3000D Magnetron Power Supply


Universal high-voltage power supply for plasma applications. Widely used to drive magnetron sources where the required power does not exceed 3000W.

0.00 zł 0.0 PLN 0.00 zł

0.00 zł

    This combination does not exist.

    Terms and Conditions
    Lead time 4-6 weeks



    Input Supply Voltage

    ( Configurable with order )

    Output power3000W max
    Output Voltage / Current200– 1000 VDC negative polarisation (10-volt resolution)

    0 – 3000 mA (1 mA resolution)

    Insulation levelClass B
    Adjustment accuracy≤1%
    Regulation modePower, Voltage or Current mode
    Output protectionOutput overvoltage, output overcurrent, output imbalance
    Input protectionInput overvoltage, input undervoltage, input overcurrent, phase loss
    Communication InterfaceAnalog I/O, Digital on repeat
    Type of controlLocal or remotely
    Arc DetectionDynamic is suppression function, less likely to generate arc, wide load adaptability range
    Dimensions483 x 395 x 88 mm (W x D x H)- 2U Rack Mounting Standard
    Weight10.8 kg


    • Operating mode: DC
    • Fast response arc detection/suppression
    • Switched control methods (I, V, P) for maximum performance,
    • Transparent interface with graphic display and desk light identification parameters
    • Stable power operation from just 2W,
    • High acceptance output impedance – ability to work with magnetrons of different sizes,
    • User-friendly interface with graphic display, keypad, and rotary encoder
