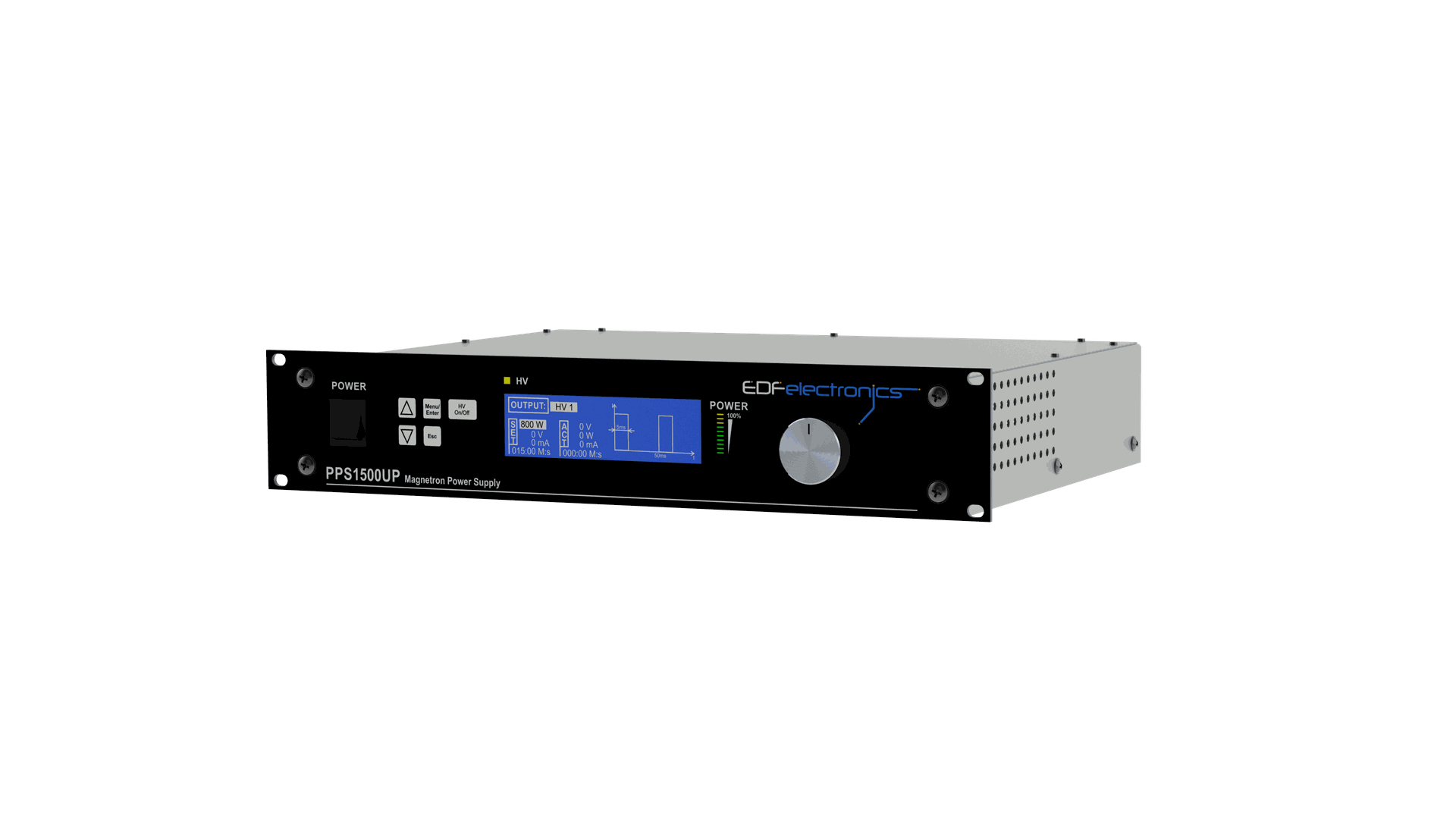

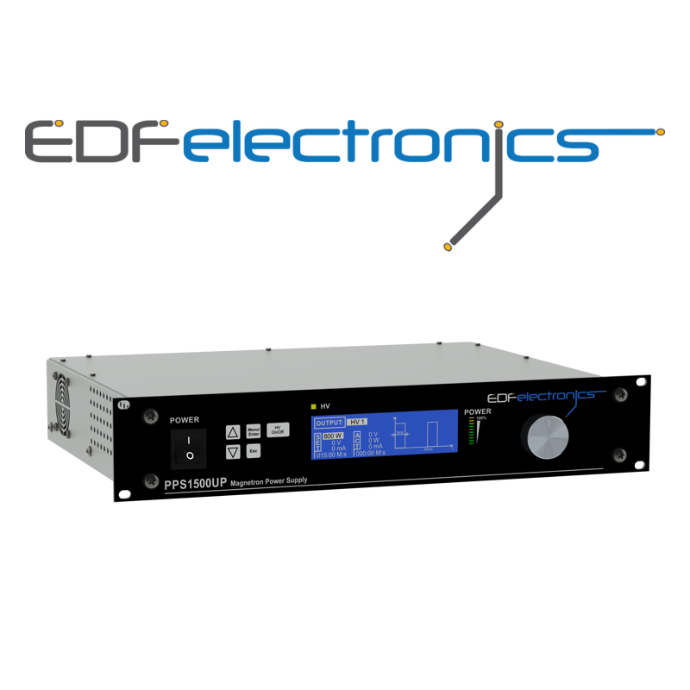

PPS1500U-120 Magnetron Power Supply


1500W,120kHz Unipolar Pulse DC power supply RS232 or RS485 in standard *

*One of the interfaces has to be chosen with the order

0.00 zł 0.0 PLN 0.00 zł

0.00 zł

    This combination does not exist.

    Terms and Conditions
    Lead time 4-6 weeks


    The MAGNETRON product line includes sputtering power supplies for DC, MF and PulsDC applications for low power and high accurate process stabilisation – up to 1,5 kW. With good arc handling systems our power supplies are perfect for R&D applications and small manufacturing processes, where high accuracy of coating thickness layers are required

    Output power:

    1 … 1500 W DC

    1 … 1050 W PulseDC


    1 … 1500 W DC

    1 … 1050 W PulseDC

    Output Voltage:1200V max1200V max
    Output Current:3A max3A max
    Mode of operation:DC and Pulse DCDC and Pulse DC
    Frequency of operation:10 kHz … 120 kHz for PulseDC10 kHz … 300 kHz for PulseDC
    Main Supply:230 VAC/ 6,15A230VAC/ 6,15A
    User Interface:Graphics LCD 240 x 64
    Graphics LCD 240 x 64
    Hardware Interface:RS 232 or RS485
    EthernetIP, Analog I/O*
    RS 232 or RS485
    EthernetIP, Analog I/O
    Mobile device control:-
    Arc Management:Monitoring only
    Monitoring only
    Duty Cycle3…70%3…70%
    Standards compliancesCE, RoHSCE, RoHS

    *Additional options to be chosen with the order
