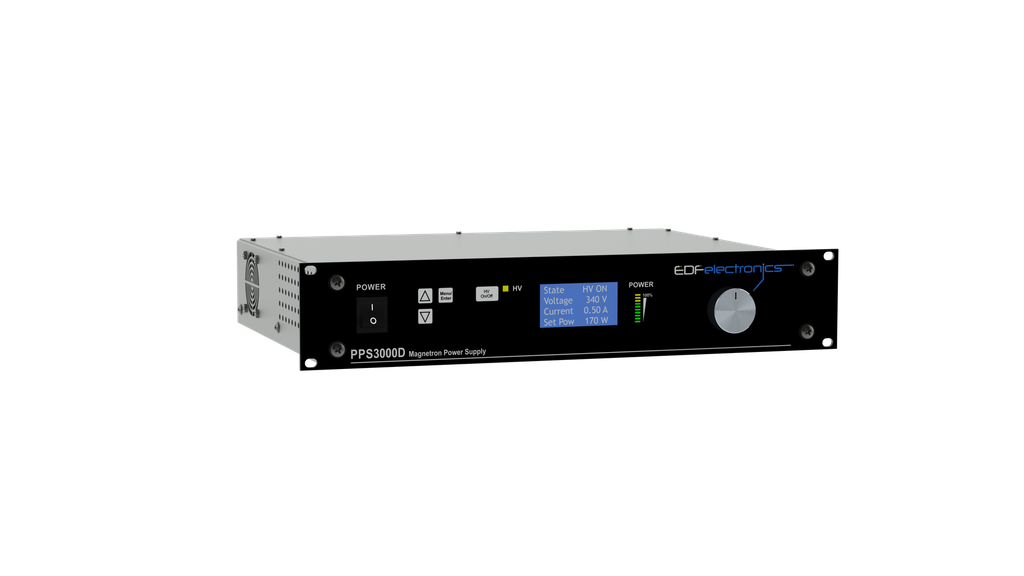

PPS3000D Magnetron Power Supply
Universal high-voltage power supply for plasma applications. Widely used to drive magnetron sources where the required power does not exceed 3000W.
PPS3000D
| Input Supply Voltage ( Configurable with order ) | AC220V±10% |
| Output power | 3000W max |
| Output Voltage / Current | 200– 1000 VDC negative polarisation (10-volt resolution) 0 – 3000 mA (1 mA resolution) |
| Insulation level | Class B |
| Adjustment accuracy | ≤1% |
| Regulation mode | Power, Voltage or Current mode |
| Output protection | Output overvoltage, output overcurrent, output imbalance |
| Input protection | Input overvoltage, input undervoltage, input overcurrent, phase loss |
| Communication Interface | Analog I/O, Digital on repeat |
| Type of control | Local or remotely |
| Arc Detection | Dynamic is suppression function, less likely to generate arc, wide load adaptability range |
| Dimensions | 483 x 395 x 88 mm (W x D x H)- 2U Rack Mounting Standard |
| Weight | 10.8 kg |
Features:
- Operating mode: DC
- Fast response arc detection/suppression
- Switched control methods (I, V, P) for maximum performance,
- Transparent interface with graphic display and desk light identification parameters
- Stable power operation from just 2W,
- High acceptance output impedance – ability to work with magnetrons of different sizes,
- User-friendly interface with graphic display, keypad, and rotary encoder
