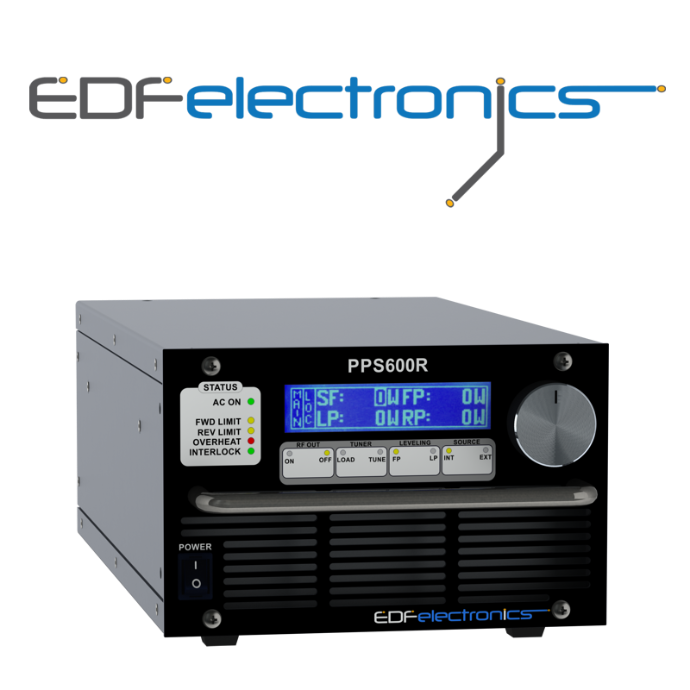

PPS600R
| Frequency of operation | 13.56 MHz |
|---|---|
| Frequency Stability | 0.005% or better |
| RF Power Rating | 600 Watts nominal into 50 Ohms |
| EXT RF Input Drive for AGC | +0 to +3 dBm for best operation |
| CEX Input | 3Vp-p to 8Vp-p at 13.56 MHz |
| CEX Output | 3Vp-p to 8Vp-p at 13.56 MHz |
| Input and Output Impedance | 50 Ohm |
| IN / OUT VSWR | 1.2:1 max – input, 3:1 max – output |
| Output VSWR Protection | 50 Watts max reflected power limit (Automatic limit within 0.1 ms) |
| Harmonic Level @ 100 W | ≥ – 50 dBc |
| Ramp Operation | Ramp speed: 1 W/s ̶ 99 W/s Controlled via front panel and GUI |

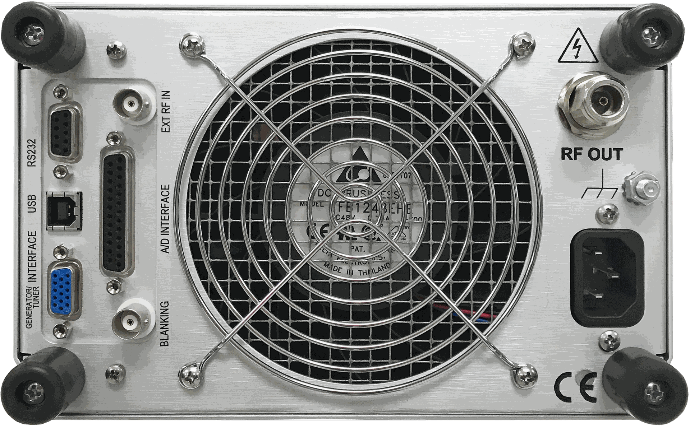

| Communication Interface | Analog ports: SUBD-25 (rear panel) Digital ports: RS-232, RS-422, USB 2.0 (rear panel) |
| Cooling | Forced air, temperature controlled, heatsink temperature monitored for equipment safety at 70C limit. |
| AC Power | 100-120 Vac, 50-60Hz, 13.5A, 200-240 VAC, 50-60 Hz, 3.5A |
| Weight | 9.0 kg |
| Dimentions [mm] | 5.25” H x 8.75” W x 15.00” L |
