Pulse DC series
Pulse DC Power Supplies
The PPS DC Magnetron Power Supplies are versatile dual DC source power supplies for R&D coating & cleaning applications. It can control up to two sources which can be any combination of compact magnetron sputter heads or glow discharge heads. Sputter sources can be positioned on separate chambers even.
These systems come in 5 versions:

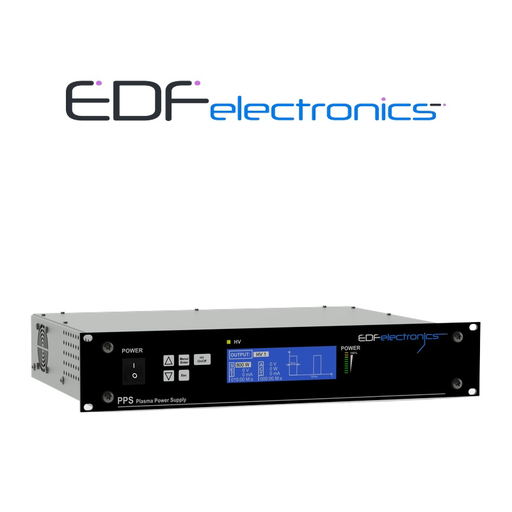

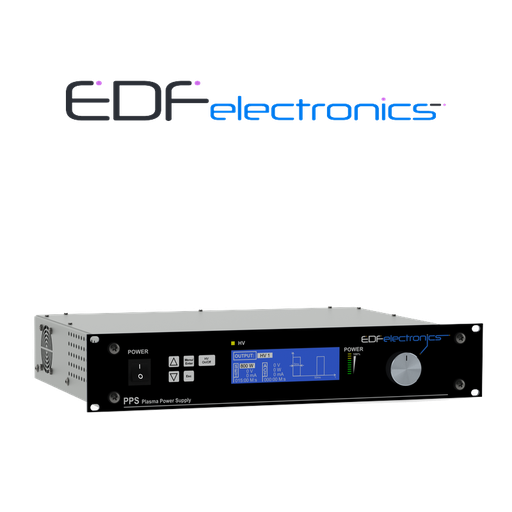

PPS 1500U-120 | PPS 1500U-300 | |
Output Power | 1500 W in DC mode/Pulse Mode | 1500 W in DC mode/Pulse Mode |
Output Voltage | 1000 V (1200 V peak injection voltage) | 1000 V (1200 V peak injection voltage) |
Output Current | 3000 mA | 3000 mA |
Mode of operation | DC and Unipolar PulseDC | DC and Unipolar PulseDC |
Frequency of operation | 10 kHz - 120 kHz | 10 kHz - 300 kHz |
Communication | ModBus RTU/TCP | ModBus RTU/TCP |
Interface | RS232/485, Analog I/O*, Ethernet TCP* | RS232/485, Analog I/O*, Ethernet TCP* |
* additional options
